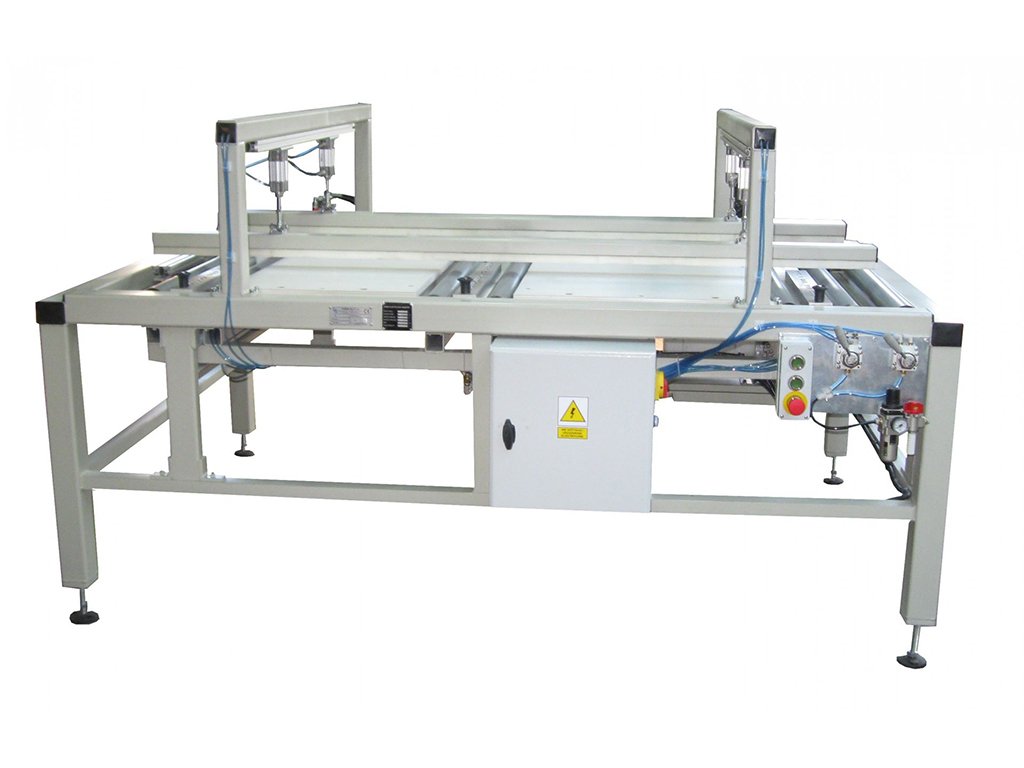

The HSRD hydraulic press is a machine for pressing glued door frames and other frames of similar dimensions during assembly.
The HSRD press consists of:
- a body, comprised of a base with a frame mounted on it
- Sliding beams
- A horizontal and vertical clamping unit
- The hydraulic system
- The electrical installation
TECHNICAL AND OPERATIONAL DATA: | ||
Door width min - max | mm | 600-1000 |
Door length max | mm | 2050 |
Working level | mm | 900 |
Number of horizontal clamping cylinders (hydraulic clamping) | pcs. | 3 |
Operating pressure of the hydraulic system max | MPa | 16 |
Compressed air pressure | MPa | 0,6 |
Installed power | kW | 1,1 |
Supply voltage | V AC | 3/N/PE, 400V 50Hz |
Working voltage | V DC | 24 |
Overall clamp dimensions | mm | 2250x1400x1000 |
Machine mass | kg | 350 |
